Description

BBP-100 is a kind of portable hardness tester, it is the typical model which is in widest application mainly used for rapid hardness test for aluminum and aluminum alloy, as well as fiberglass reinforced plastic. Barcol hardness tester has the simple operation by just single hand and wide measuring range, no experience to be needed. It can be applied to all the aluminum and aluminum alloy, only need to contact one side to finish the test.

Application

Features

• Easy to use: Single hand operation, easy to use, high efficiency.
• High Sensitivity: Barcol Hardness Tester has 100 scales. Sensitivity is higher than that of Webster Hardness Testers.
• Hardness Blocks: Every piece of Barcol hardness block is directly imported from the United States. It can ensure the veracity, stability, and uniformity of the measurement results.
• Wide Testing Range: It can test from pure aluminum to super hard aluminum alloy.
• Screw Rod: With sophisticated screw machinery structure Ensure the life and reliability of the instruments are much higher than that of other Barcol Hardness Testers are made of plastic gears by other companies.

Specifications

Accessories

• Tester Main Body: 1
• Calibration Wrench: 1
• Indenter: 2
• Leg: 1
• Barcol Hardness Block: 2
• Carraying Box: 1


Software Description

Download Cataloge

Click Here For Brochure

Description

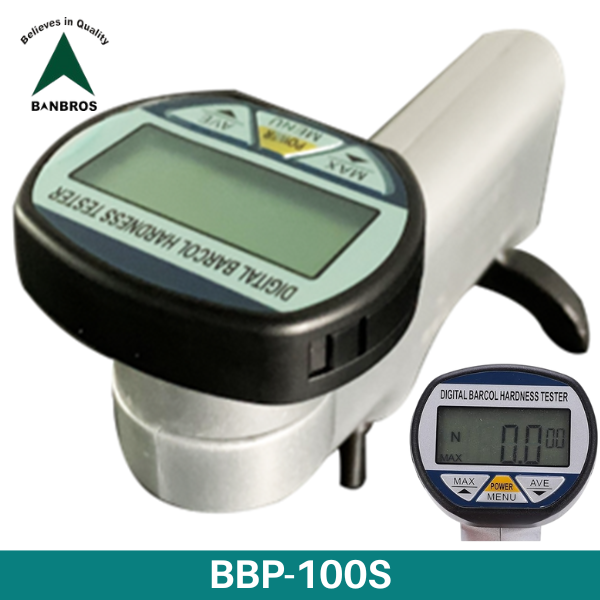

BBP-100S is a kind of portable digital hardness tester, it is the typical model which is in widest application mainly used for rapid hardness test for aluminum and aluminum alloy, as well as fiberglass reinforced plastic. Barcol hardness tester has the simple operation by just single hand and wide measuring range, no experience to be needed. It can be applied to all the aluminum and aluminum alloy, only need to contact one side to finish the test.

Application

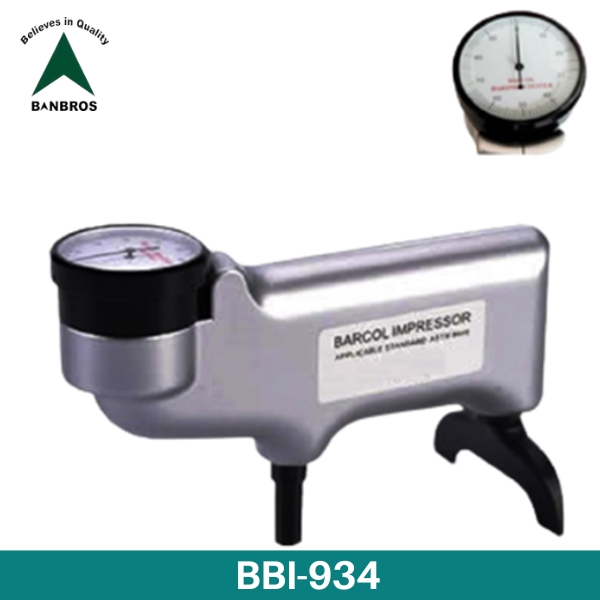

• Standard Barcol Impressor is an indentation hardness tester. The operation is easy, quick and almost non-destructive. The test is as simple as one press. It is a convenient tool for testing the hardness of aluminum, aluminum alloys and fiber reinforced plastics, which conforms to American Standard ASTM B648.
• Standard Durometro Barcol Hardness Tester is mainly used to test the hardness of aluminum and aluminum alloys, to test the hardness of other soft metals and glass fibre reinforced plastic products. It can also be used to test the hardness of extra-large, extra wide, extra thick work pieces, and to test the hardness of boards, belt materials, section materials, forgings and castings etc.
• Standard Durometro Barcol Hardness Tester is commonly used as supplement of Webster Hardness Testers. It is usually used when test the hardness of pure aluminum, low hard aluminum alloys and extra-large, extra thick materials.

Features

• Equipped with bracket rotation positioning device.
• Hardness conversion function: Machine automatically converts hardness HW, HV, HB, HRE, HRF, HRB, HRH
• With a maximum value retention function, recording the maximum hardness value during the measurement period.
• Mean value calculation function for up to 29 sets of data.
• Small size and light weight (550g), easy to carry.
• Good stability, easy calibration and high testing accuracy.
• Easy to use: one-handed operation, no need to use experience, in any occasion, as long as the reach can be tested.
• Wide testing range. From very soft pure aluminium to particularly hard aluminium alloy can be tested, the effective test range is equivalent to the Brinell hardness of 25-135HB.
• High sensitivity. Webster hardness tester has only 20 scales, while the Barcol test range 0-100, with higher sensitivity.
• No need to support, suitable for testing oversized and thick workpieces and fittings.

Specifications

Accessories

• Tester Main Body: 1
• Calibration Wrench: 1
• Indenter: 2
• Leg: 1
• Barcol Hardness Block: 2
• Carrying Box: 1
