Description
Our Digital Travelling Microscope is ideal for anyone with impaired vision wishing to perform tasks at a greater distance than spectacles or hand magnifiers with the same power.
Application
Features
Specifications
| Model No. | BDTM-200 |
| Working Distance Range | 200-2000 mm |
| FOV | Min. 1000 µ for ¼” CCD @ 200 mm working distance |
| Magnification | >/- Variable with 5X as standard |
| Resolution | 1 micron |
| Illumination Options | Co-axial with the viewing tube |
| Illumination Type | White 3 W LED lighting |
| Travel | Vertical Travel • Max. 1100 mm or more ; 500mm using rack and pinion and 600 mm slide movement. X – Y movement • 25 mm with 10 µ resolution |
| Rotation (roll) | 45 Deg. |
| Rotation (Yaw) | 360 Deg. |
| Camera type | 1/2.5” CMOS |
| Data acquisition | Yes |
| Active imager size | 5.70mm x 4.28mm, 7.13mm diagonal |
| Active pixels | 2592 x 1944 (5Mp) |
| Pixel size | 2.2 x 2.2 µm |
| Shutter type | Global reset release (GRR), Snapshotonly, Electronic rolling shutter (ERS) |
| Power consumption | 381mW at 15 fps full resolution |
| Standard Accessories | |
| Tripod Stand with adjustable legs | Yes |
| Rack and pinion | Yes |
Accessories
Software Description
Download Cataloge
ENQUIRY
Digital Travelling Microscope
Description
Banbros BRM-6 Rolling Mills is suitable for application for roll of material like Gold alloys, Silver alloys, Cupro-Nickel, Tombac Bronze, Ferritic Stainless Steel and other similar material.
- Roll Width- 6"
- Roll Dia. - 4"
- Sheet width to roll – 50mm
- Sheet thickness to roll – 12 mm
- Motion- Reversible motion of rollers
- Input material- Gold alloys, Silver alloys, Cupro-Nickel, Tombac Bronze, Ferritic Stainless Steel and other similar material.
- Screw down-0.01 mm
- Hardness of roll- suitable as per input material.
- Roll material- suitable as per input material or tool steel (UN ST30402)
- Max roller speed- 10 R.P.M. Per minute
- Display digital
Application
Features
Specifications
Accessories
Software Description
Download Cataloge
ENQUIRY
Rolling Mill
Description

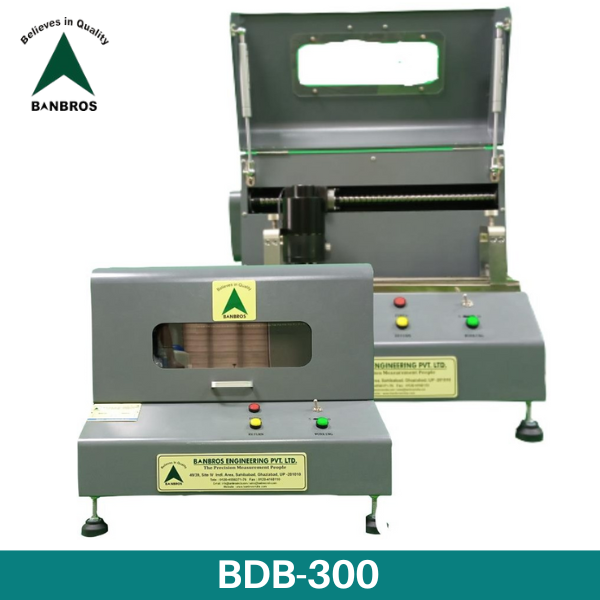

Power-driven Punch For Tensile Specimen (Power-driven Striking Point Machine) Is the Specialized Equipment.
This machine adopts high precision ball screw to locate correctly and uses import transducer collecting rotation signal to drive high- frequency electromagnet to strike point synchronously. Gauge length is correct, high-efficient and easy to operate.It's the necessary matching equipment for labs.
WORKING PRINCIPLE : This equipment use micro-motor as the power, through belt drive hogh precision ball screw rotation synchronously, thus promote the punch movement horizontally screw rotation every circle (or half circle), impact needle marching 10mm (or 5mm), meanwhile sensors collect a signal and driven the high-frequency electromagnet with impact needle for striking.
Motor continous operation and can continuously strike point 60 (5mm) or 30 (10mm). Such driving struck way has no special requirement to screw speed whether uniform.It can also ensure the precision of gauge length even if the rotation speed is uneven.
Application
Features
Specifications
| Model No. | PTS-300PD |
| Control Methods | Power Driven |
| Max. Guage Length | 300mm |
| Interval | 5mm or 10mm (Adjustable) |
| Striking Point Each Time | Single |
| Power of Motor | 10W |
| Outline Size (L*W*H) | 460mm*315mm*450mm |
Accessories
Software Description
Download Cataloge
ENQUIRY
Punching Machine
Description
Test Desc
Application
Test Application
Features
Test Features
Specifications
Test Specification
Accessories
Test Accessories
Software Description
Test Software
