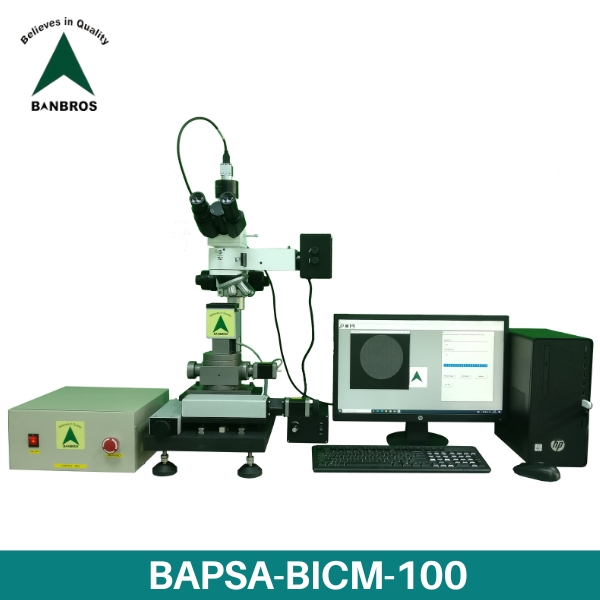

- Automatic Particle Size Analyzer
This microscope has all the high-end world class optics assembled with precision-engineered mechanical components for observation at higher magnifications.
The microscope is associated with high-class "Plan-chromatic" objectives to offer highest resolution for critical microstructures at high magnifications. for e.g. hardened & tempered, Spherodized, Lamellar peralite and other micros.
Mechanical assemblies’ cleanliness measurement test set up By - Particle Size Measurements.
Computer system included in the offer
-Trinocular Observation Head-
Siedentopf observation head inclined at 30° rotatable at 360°.
Vertical phototube for micro photography.
Diopter adjustment ring on ocular tube (±5).
Inter pupillary distance from 55mm to 75mm.
-Eyepiece (Anti fungus)-
Wide field 10X (paired) F.O.V. 22mm.
-Objectives (Infinity corrected)-
M Long working distance plan 5X
M Long working distance plan 10X
M Long working distance plan 20X
M Long working distance plan 50X
B) MOTORIZED STAGE WITH CONTROL PANEL
C) DIGITAL COLOR CMOS CAMERA- (5 MPIXEL)
D) PARTICLE ANALYSIS SOFTWARE (Software as per ISO 16232)
Microstructure Software Module
*For more details refer catalogue
|Image Sensor||1 / 2.5" type CMOS|
|Effective picture elements||2592 x 1944 (H X V)|
|Maximum Frame Rate||5.8 at high resolution|
|Pixel Size||2.2 X 2.2|
|Shutter Type||Rolling / Global reset|
|ADC resolution / output||10 bit → 10 / 8 bit|
|Exposure Time||10 ms – 1 s|
