Description
Our V/U Notch Broaching Machines are suitable for ferrous & nonferrous material for sample preparation of 'V' or ‘U’ notches for Impact Testing Machine.
Notch Broaching Machine can cut correct ''V'/ ‘U”notches in Charpy or Izod specimen by means of multi-toothed broach Easy operation, high efficiency. One cut action can notch two specimens.
Application
Features
- Robust design, cuts the notches (V or U) very accurately
- Specially designed multi-toothed broach.
- Simple to use, accurate & reliable.
- Equipped with broach guard for safety.
- Easy removal & assembly of broach & Longer broach Life.
- Depth of V-Notch adjustment provided in case of increased or decreased depth.
- Micro meter for fine adjustment.
- Excellent notch finish & Excellent Repeatability.
- Front door access for easy maintenance.
- Compact, table top model can be easily placed in labs, institutions, etc.
Specifications

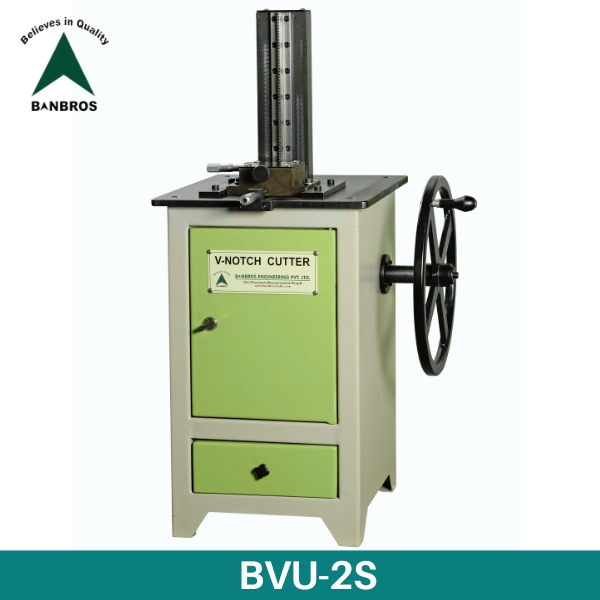

| Model No. | BVU-2S |
| Driving Mode | Manually Operated |
| Broach | V / U (Standard 2mm Depth) |
| Specimen Dimensions | 10x10x55mm (Standard Dimensions) |
| Broach Stroke | 325mm |
| Dimensions | 600x500x1000mm |
| Weight | 100 Kgs (Approx.) |
| One Blade, “V” Type fitted with machine (“U” Type Optional), Extra Broach as Spare Part Available | |
Accessories
Software Description
Download Cataloge
ENQUIRY
Manual Notch Broaching Machine
Description
Our V/U Notch Broaching Machines are suitable for ferrous & nonferrous material for sample preparation of 'V' or ‘U’ notches for Impact Testing Machine.
Notch Broaching Machine can cut correct ''V'/ ‘U” notches in Charpy or Izod specimen by means of multi-toothed broach Easy operation, high efficiency. One cut action can notch two specimens.
Application
Features
- Robust design, cuts the notches (V or U) very accurately
- Specially designed multi-toothed broach.
- Simple to use, accurate & reliable.
- Equipped with broach guard for safety.
- Easy removal & assembly of broach & Longer broach Life.
- Depth of V-Notch adjustment provided in case of increased or decreased depth.
- Micro meter for fine adjustment.
- Excellent notch finish & Excellent Repeatability.
- Front door access for easy maintenance.
- Hardened rods with LM Bearings and bushes for smooth motion.
- Compact, table top model can be easily placed in labs, institutions, etc.
Specifications

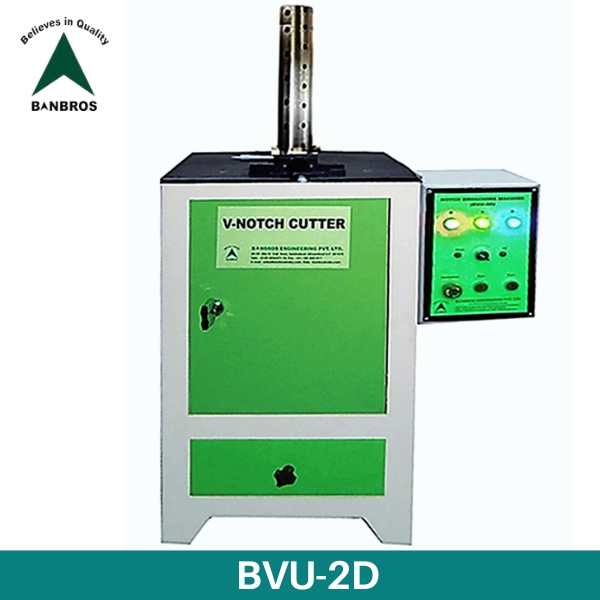

| Model No. | BVU-2D |
| Driving Mode | Motorized Electric |
| Broach | V / U (Standard 2mm Depth) |
| Specimen Dimensions | 10x10x55mm (Standard Dimensions) |
| Broach Stroke | 325mm |
| Power Source | 1 HP, 415 Volts, 50 Hz |
| Weight | 130 Kgs (Approx.) |
| One Blade, “V” Type fitted with machine (“U” Type Optional), Extra Broach as Spare Part Available | |
Accessories
Software Description
Download Cataloge
ENQUIRY
Motorized Notch Broaching Machine
Description

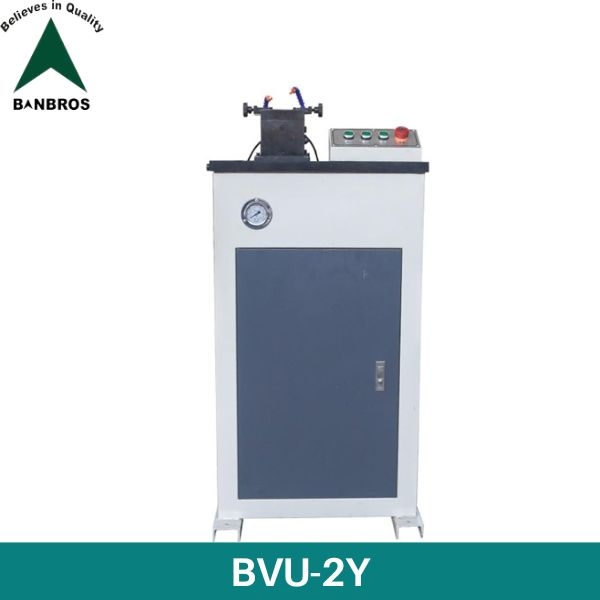

BVU-2A Automatic Broaching Machine is driven by oil pump hydraulic cylinder, the V type or U broach will be configurated according to user requirements, and could be successfully drawn two standard sample gap. The broach is made by special materials and process with high hardness and abrasion resistance as well as long service life. The V-notch and U-shaped notch (2 mm) can meet related national standards ISO 148-1: 2006. Due to a broaching processing forming principle, the processing of identity is wonderful and qualified with the requirements.
Standards: ISO148, EN10045, ASTM E23, JIS Z 2242, GOST 9454
Quality Standards & Accreditation: ISO:9001 and CE accredited and an active member of all the main international standard organizations, including ISO, EN, ASTM, AASHTO and AWRG, we are also involved in steering future Standards’ development so they are written with practical operation and application in mind for the benefit of the end-users.
Application
Features
- Robust design, cuts the notches (V or U) very accurately.
- Specially designed multi-toothed broach.
- Simple to use, accurate & reliable.
- Equipped with broach guard for safety.
- Easy removal & assembly of broach & Longer broach Life.
- Depth of V-Notch adjustment provided in case of increased or decreased depth.
- Micro meter for fine adjustment.
- Excellent notch finish & Excellent Repeatability.
- Front door access for easy maintenance.
- Hardened rods with LM Bearings and bushes for smooth motion.
- No efforts, all by motorized operation, just to press a push button to start.
Specifications

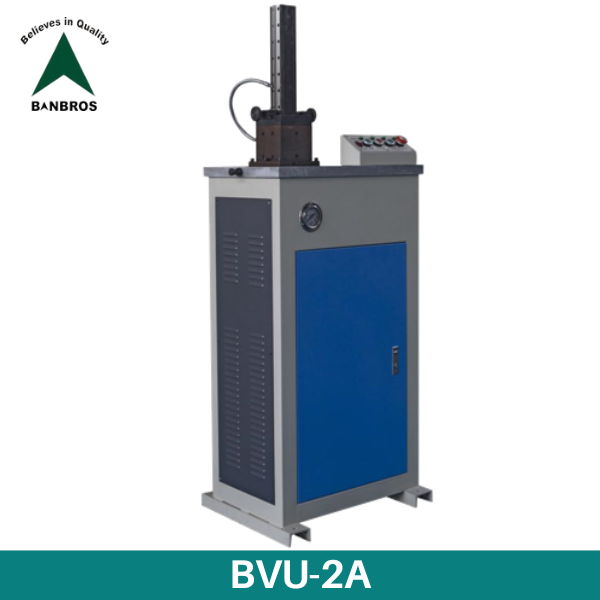

| Model No. | BVU-2A |
| Type of Specimen Notches | V and U (2mm) |
| Processing Specimen Size | 10*10 (7.5, 5, 2.5)*55mm |
| Speed for The Broach | 2.0m/min |
| Stroke for Broach | 340 mm |
| Material for The Knife | W18Cr4V |
| Load Frame Dimension | 700*550*1250mm (L*W*H) |
| Power Supply | 3P 380V±10%,50-60HZ,2.3kW |
| N.W. | 200kg |
| Operating Temperature | 0 to + 38° C (+32 to +100° F) |
| Humidity Range | 10% to 90% non-condensing |
Accessories
- Host Frame: 1 set
- Cutting Knife 2mm V Type: 1 set
- Cutting Knife 2mm U Type: 1 set
- Sample Holding Device: 2 sets
Software Description
Download Cataloge
ENQUIRY
V/U Notch Broaching Machine (Hydraulic)
